Blackmagic Design Decklink SDI 4K Capture & Playback Card
Blackmagic Design Decklink SDI 4K Capture & Playback Card
₵4,500.00

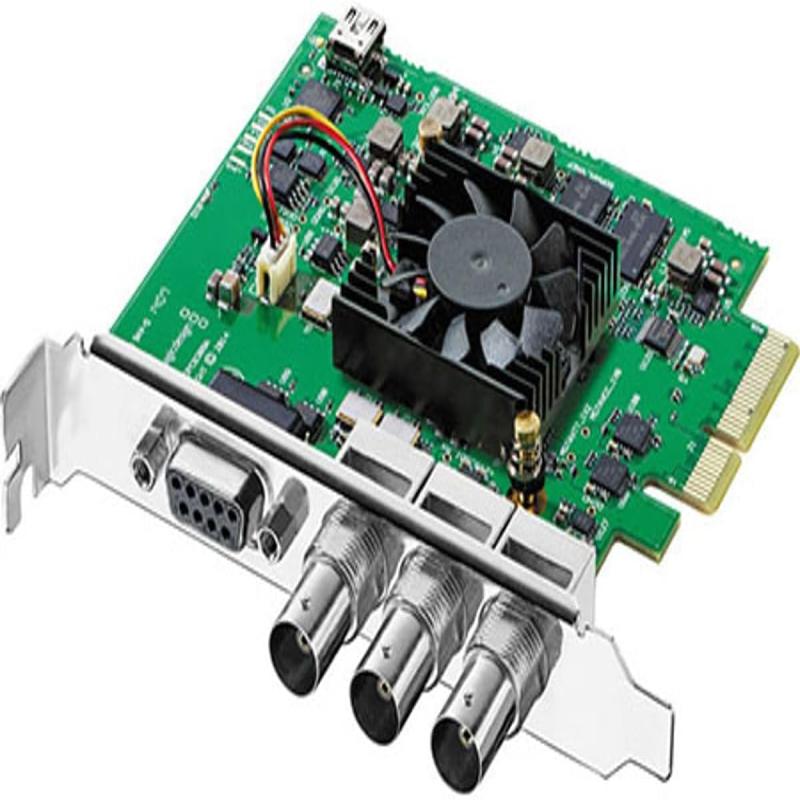

The Decklink SDI 4K Capture & Playback Card from Blackmagic Design features a single multi-rate SDI input and multi-rate SDI output. These multi-rate connections accept single-link SD, HD, 3G, and 6G-SDI signals, providing support for resolutions from SD to Ultra HD 4K (3840×2160) and DCI 4K (4096×2160). Additionally, the Decklink SDI 4K includes RS-422 deck control, internal keying, and a reference input.
Decklink SDI 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. Decklink SDI 4K is compatible with Mac, Windows, and Linux based workstations.
Be the first to review “Blackmagic Design Decklink SDI 4K Capture & Playback Card”
Related Products
Blackmagic Design DeckLink Studio 4K 6G-SDI Video Capture Card
Blackmagic Design DeckLink Studio 4K 6G-SDI Video Capture CardBlackmagic Design DeckLink Studio 4K 6G-SDI Video Capture Card
Blackmagic Design DeckLink Studio 4K 6G-SDI Video Capture CardThe DeckLink Studio 4K Capture & Playback Card from Blackmagic Design features 6G-SDI and 4K HDMI inputs/outputs which support resolutions from SD to Ultra HD 4K (3840×2160) and DCI 4K (4096×2160). Additionally, the DeckLink Studio 4K offers a wide range of video and audio connections via an included breakout cable. These connections consist of analog component, S-Video, composite video, two channels of AES/EBU audio, and four channels of balanced analog audio. The card also provides RS-422 deck control, a reference input, and a down converted SD output.
DeckLink Studio 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. DeckLink Studio 4K is compatible with Mac, Windows, and Linux based workstations.
- PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
- Multi-rate SDI and HDMI connections accept SD, HD, 2K, and 4K resolutions
- 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
- 10-bit, 4:4:4 1080p by single-link 6G-SDI
- 8-bit RBG / 10-bit YUV HDMI output
- HD to SD down-conversion
- SD to HD up-conversion
- Hardware cross conversion between 720p and 1080p on playback
- RS-422 deck control
- Internal SD keying
- Reference input
- Blackburst and tri-sync
- Supports 16 channels of embedded SDI and 8 channels of embedded HDMI audio in HD, 2K, and 4K resolutions (8 channels of embedded SDI audio in SD)
Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card
Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback CardBlackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card
Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback CardBlackmagic Design Extreme Overview
- 1
- 2
- 3
- 4
The Blackmagic Design DeckLink 4K Extreme 12G is an 8-lane PCIe Gen2 digital cinema capture and playback card with two multi-rate 12G-SDI inputs and outputs that accept resolutions from SD up to DCI 4K (4096 x 2160) at 60 fps. The card supports 10-bit YUV and 8-, 10-, and 12-bit RGB color, as well as up/down/cross conversions and 3D stereoscopic output at full bandwidth 4:4:4:4 RGB. The DeckLink 4K Extreme 12G features a mezzanine card design that has 4K HDMI input and output connectors on a second daughter card, along with connections for adding two optional optical fiber modules for Dual Link optical fiber SDI input and output. The card also supports AES/EBU balanced XLR and unbalanced RCA inputs/outputs, analog video I/O, reference input, and RS-422 control via an included breakout cable.
- 8-Lane PCIe Gen2 I/O card compatible with Mac-, Windows-, and Linux-based workstations and servers
- Multi-rate 12G-SDI and HDMI connections accept SD, HD, 2K, and 4K resolutions
- Supports UHD 4K (3840 x 2160) and DCI 4K (4096 x 2160) up to 60 fps
- Single- and dual-link 4:4:4:4/4:2:2 signals
- 3D stereoscopic SDI output at full bandwidth 4:4:4:4
- Up/down/cross conversions
- Four channels of balanced analog audio I/O, 2 channels of AES/EBU balanced audio I/O, genlock/tri-sync input, and Sony RS-422 deck control port via included breakout cable
- Optional optical fiber modules for Dual Link optical fiber SDI input and output
- Breakout cable adds S-Video, composite, and component in/out and RS-422 control connectors
- SD card with Media Express capture and playback software, and developer SDK for Windows, Mac, and Linux
